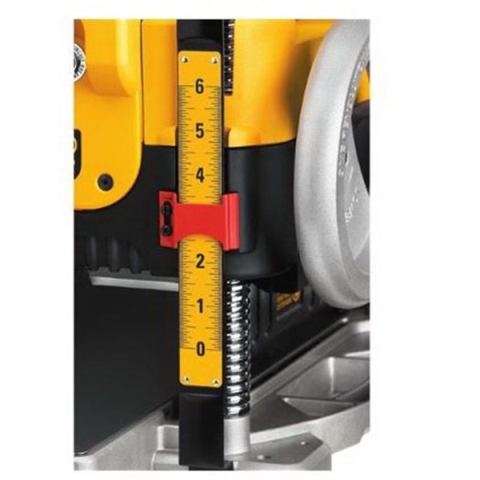

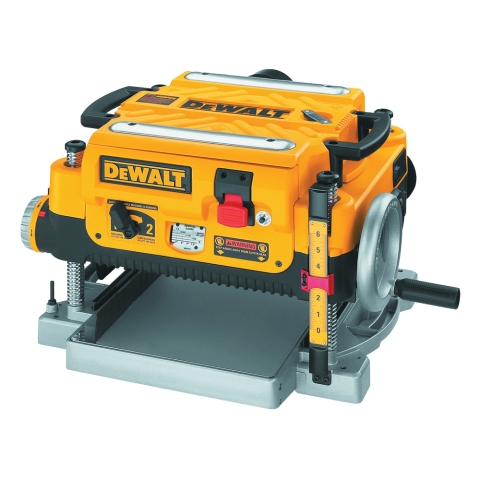

Automatic carriage lock for reduction of movement that causes snipe without need for manual engagement by user. Two-speed gear box allows user to change feed speed to optimize cuts per inch at 96 or 79 cpi. Fan assisted chip ejection vacuums chips off the cutter-head and exhausts them out of the machine. Material removal gauge and extra-large thickness scale for accurate cuts. Extra-large turret depth stop. Standard equipment is dust hose adapter and dust ejection chute. Rated at 15 A, 120 VAC motor, 10,000 rpm, 1/8 in maximum depth of cut 1/8 in, 6 in D/13 in D capacity. Feeds 14 or 26 ft/min.
| Amp Rating | : | 15 A |
| Control Type | : | Carriage Lock |
| Cord Length | : | 13 ft |
| Current Rating | : | 15 A |
| Dimensions | : | 19-1/2 in W x 22-1/2 in D x 13-1/2 in H |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 2 hp |
| Horsepower Rating | : | 2 hp |
| Includes | : | (1) Dust Hose Adapter |
| Material | : | Aluminum |
| No Load Speed | : | 20, 000 rpm |
| Planning Depth | : | 1/8 in |
| Planning Width | : | 13 in |
| Voltage Rating | : | 120 V |
